ME-528

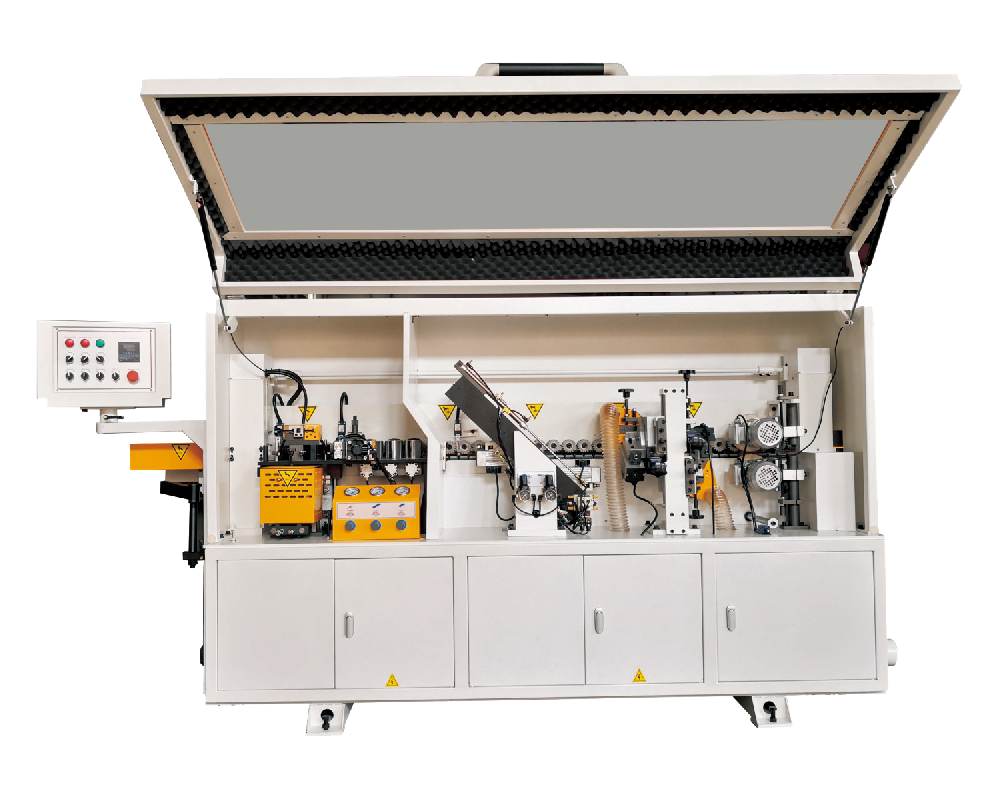

Automatic Edge Banding MachineINQUIRE NOW
Gluing
End Trimming
Fine Trimming (High Frequency Motor)
Buffing
Product Parameters
| Model | ME-528 | |
| Panel Thickness | mm | 12-55 |
| Min. Panel Width | mm | 80 |
| Edge Tape Width | mm | 10-60 |
| Edge Tape Thickness | mm | 0.4-3 |
| Feeding Speed( | m/min | 8,10,12 |
| Min. Panel Length | mm | 120 |
| Air Compressor | Mpa | 0.7 |
| Net Weight | kg | 950 |
| Overall Dimensions | mm | 2850*750*1600 |
