MJ6128/32/38TY
Precise Panel Saw T- Sliding Table 0-45° Y-Round Rod StructureINQUIRE NOW

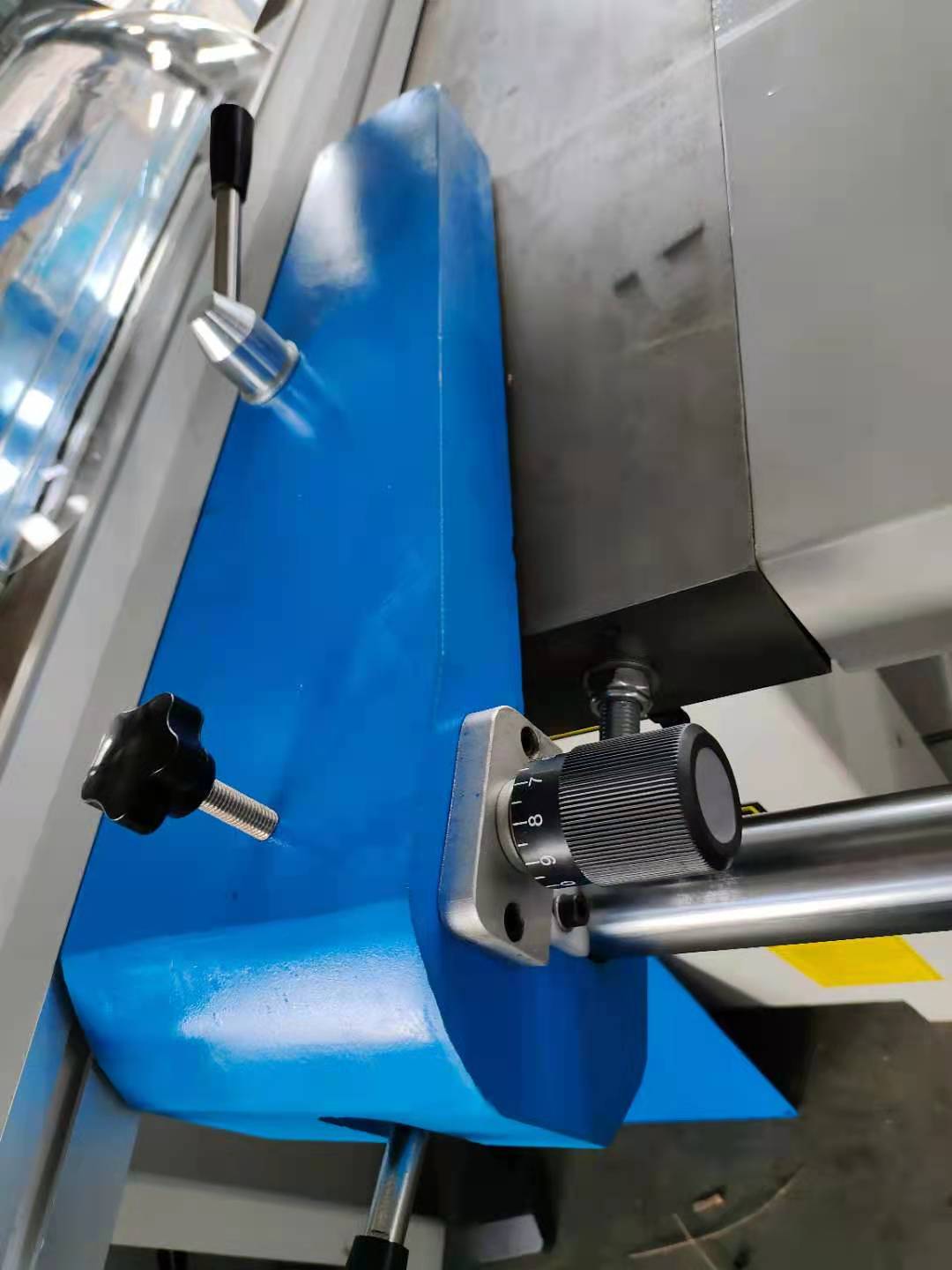

Baffle Plate

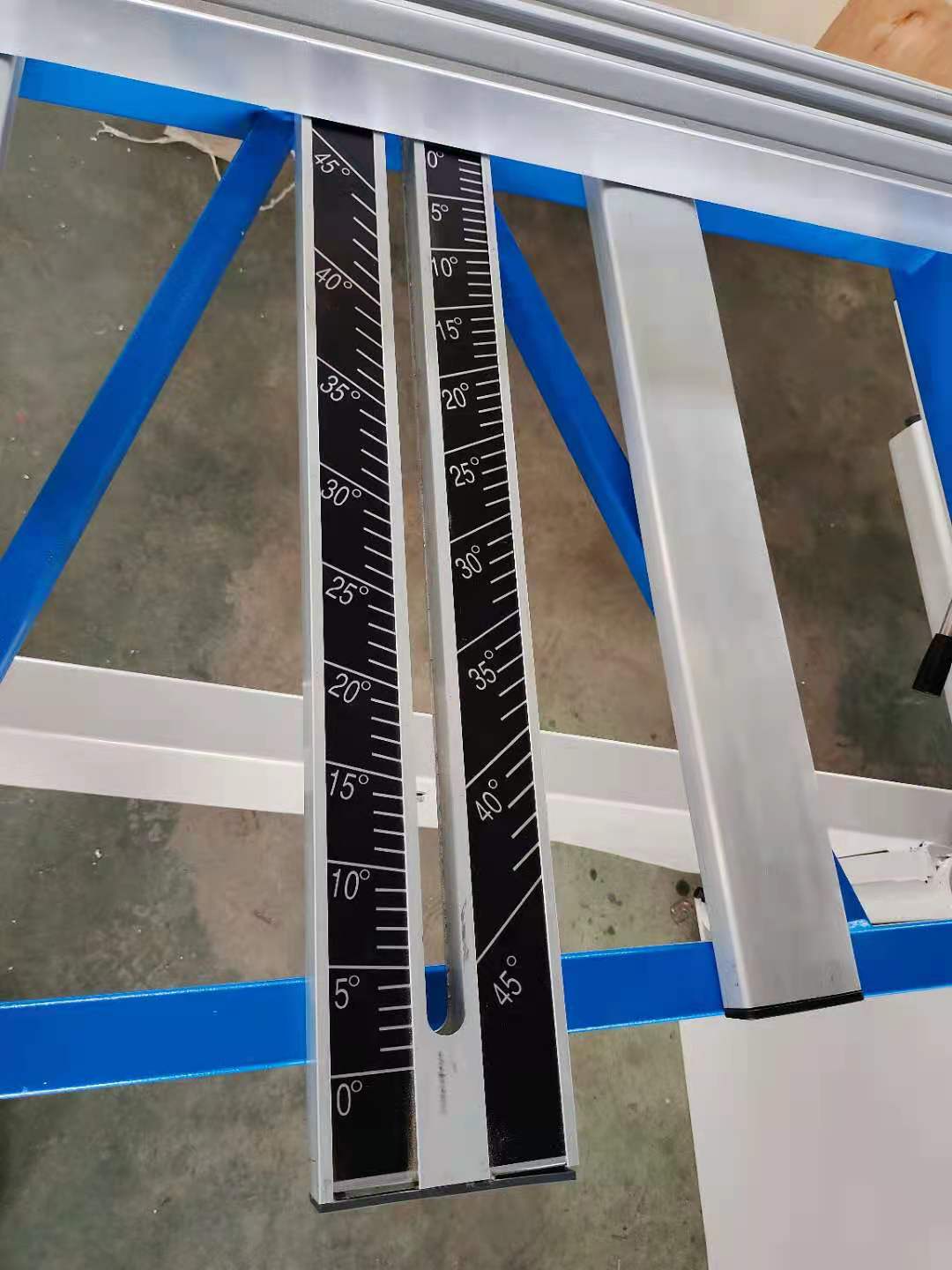

Angle Ruler

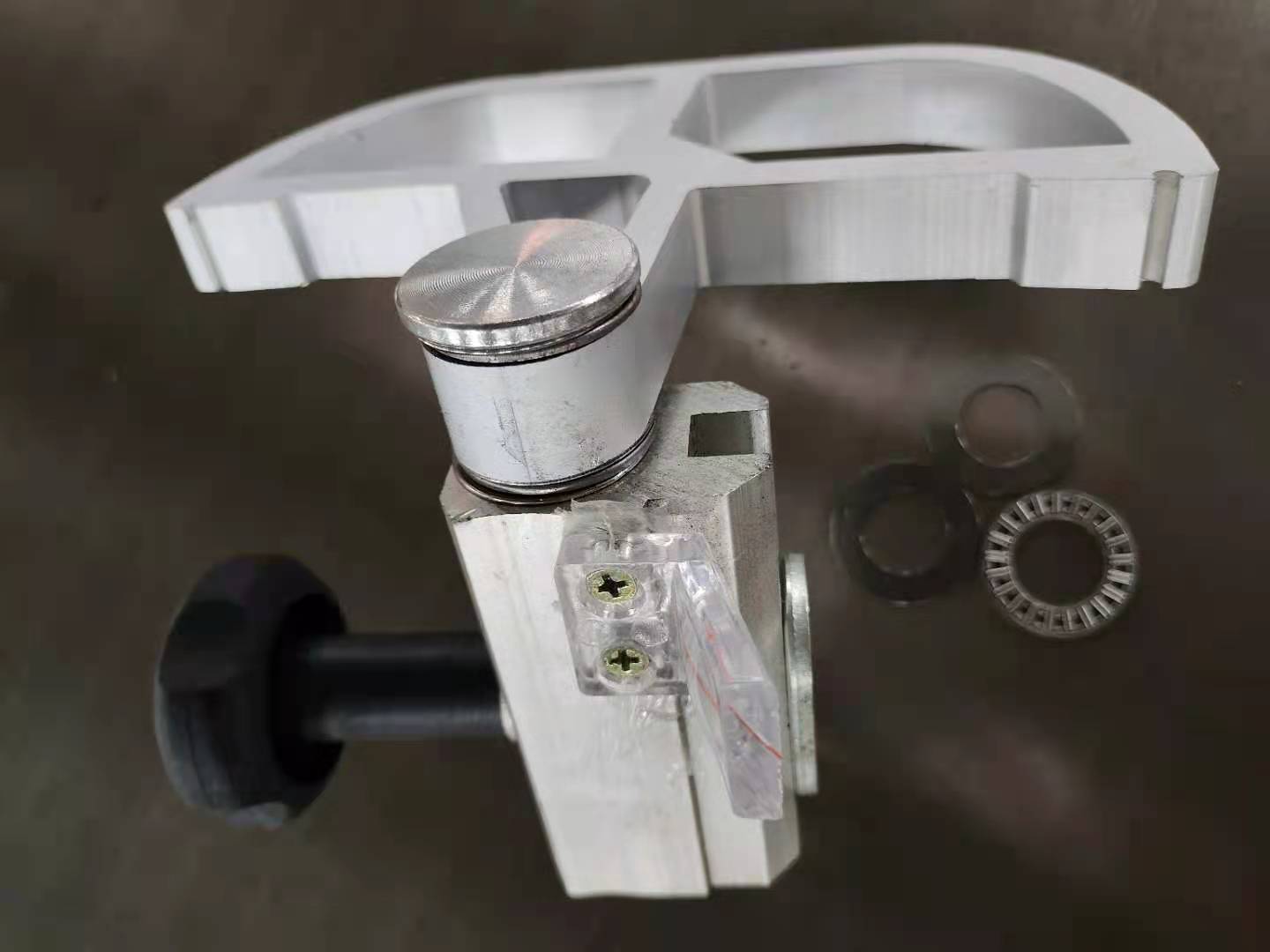

Fine Adjustment Base
Dust Cap
Product Parameters
| Model | MJ6128TY | MJ6132TY | MJ6138TY | |
| Dimensions of sliding table | mm | 2800×375 | 3200×375 | 3800X375 |
| Gross cut capacity | mm | 2800 | 3200 | 3800 |
| Width of cut between saw blade and rip fence | mm | 1250 | 1250 | 1250 |
| Saw blade diameter | mm | φ300 | φ300 | φ300 |
| Height of cut φ300mm | mm | 80 | 80 | 80 |
| Speed of main saw blade | rpm | 4000/6000 | 4000/6000 | 4000/6000 |
| Spindle diameter | mm | φ30 | φ30 | φ30 |
| Tilling saw blade | 0-45° | 0-45° | 0-45° | |
| Main motor | kw | 5.5 | 5.5 | 5.5 |
| Scoring saw blade | mm | Φ120 | Φ120 | Φ120 |
| Speed of scoring saw blade | r/min | 7000-8000 | 7000-8000 | 7000-8000 |
| Spindle of scoring saw | mm | 20 | 20 | 20 |
| Motor | kw | 0.75 | 0.75 | 0.75 |
| Net weight | kg | 650 | 750 | 850 |
| Overall dimensions | mm | 3000×3150×900 | 3250×3150×900 | 3850x3150x900 |
